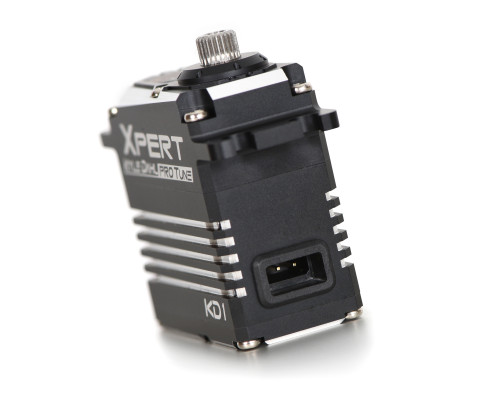

HS-6402-HV KD1 Standard Size Full Aluminum Servo

Features
  • Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
  • Global 3D 2017 Competition Winning Servo.
  • Ultra High Responsive cyclic algorithm software.
  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • Operating frequency up to 400Hz

Specifications

Buy Now
Type Standard
Product Name HS-6402-HV KD1 Standard Size Full Aluminum Servo
Part Name HS-6402-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60°
Torque (oz/in) @6.0V: 296.45 oz-in) @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
Torque (kg/cm) @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
Dimensions 40x37.80x20 mm
Weight 72g
Range up to 400Hz
Center Position 1520us
Applications Helicopter Cyclic
Gear Set P/N XGS7232S
